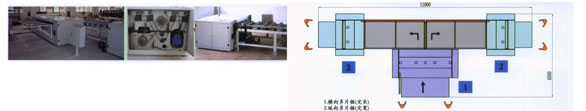

Product>>HJC Multi Rip Saw Line


    HJC series multi rip saw line main function is cut big board into small boards;it can work with the front and the back of automatic loading and unloading system to finish automatic feed in and feed out. Main model:Transverse multi rip saw HJC25-3/4; longitudinal multi rip saw HJC12-1 ,HJC12-2 and HJC13-1 and so on. Convenient and safe for operation, it features high efficiency and saving energy.



 Technical parameters

 Transverse multi rip saw

Longitudinal multi rip saw

Model

 HJC25-3

HJC25-4

 HJC12-1

HJC13-1

HJC12-2

Working width(mm)

 2460

 2460

 1250

 1380

 1250

Working thickness(mm)

 6-25

  6-25

  6-25

  6-25

 6-50

Board straightness(mm/m)

 <=0.2

  <=0.2

  <=0.2

  <=0.2

  <=0.4

 Saw blade outside dia. Inside dia.(mm)

 300-30

 300-30

 300-80

300-80

 300-80/100

Driving motor power(kw)

 1.1

1.1

1.1

1.1

2.2

Feeding speed(m/min)

 10-45

 10-45

10-45

10-45

10-45

 Main motor power(kw)

 9

 12

11

11

11+15

 Spindle rotate speed(r/min)

 2870

 2870

2930

 2930

2930

Working table height(mm)

 950

950

 740

740

 950

 Weight(T)

 2.5T

  2.6T

  2T

 2.5T

 4T

Dust hood dia

 6×Ф120

7×Ф120

4×Ф120

4×Ф120

8×Ф120
