Multi Rip Saw Line
author£ºadmin time£º2015-06-08 9:30:50 hits£º790

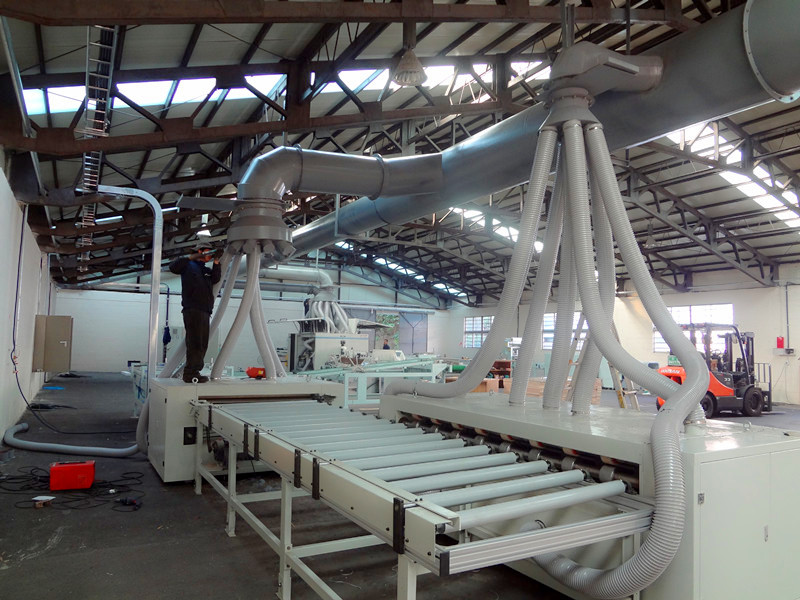

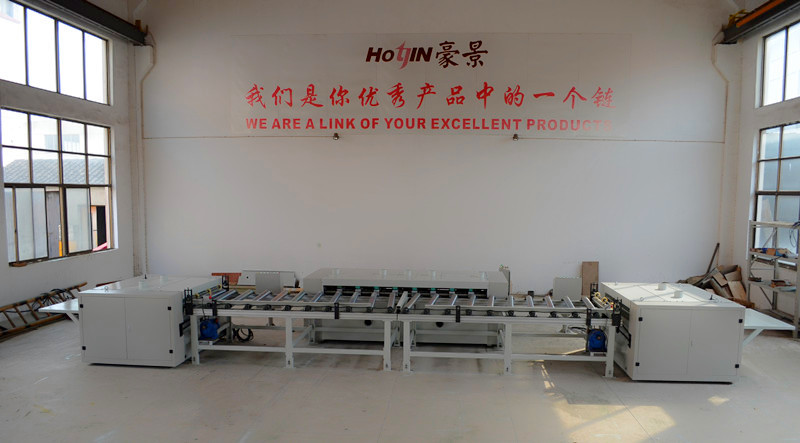

HJC series multi rip saw line main function is cut big board into small boards; it can work with the front and the back of automatic loading and unloading system to finish automatic feed in and feed out.Main model:Transverse multi rip saw HJC25-3/4; longitudinal multi rip saw HJC12-1,HJC12-2 and HJZ15 and so on.Convinient and safe for operation,it features energy saving of high effciency.



The main technical parameters

Technical parameters

HJC25 Series

HJC12 Series

HJZ Series

Workpiece width(mm)

2500

1250

1500

Working thickness(mm)

6-25

6-50

Qty of saw blade

3/4

4-13

unlimited

Feeding speed(m/min)

10-30

10-30

10-50

Power of cutter shaft(KW)

3/5.5

15/18.5

30-90

Height of working table(mm)

950

900

1125
